Stainless Steel Jacketing

Box Rib/Trapezoidal Profiled Sheets

4 X 1 Box Rib is designed with 1″ high ribs on 4″ centres, engineered for maximum structural stiffness.

X Crimped (5 mm/3/16 inch /Reeded) Profile

Stainless Steel 3/16° Corrugated (Cross-Crimped/Reeded/ 5mm corrugated) finish consists of parallel grooves or crimps about 3/16° apart running in the length direction of the pipe.

Grades- AA1060,AA3003,AA3105,AA5052,AA5005,AA6061, Alclad 3003-7072
Thickness from 0.4 – 1.2 mm
Widths – 914/1000/1220 mm
Available in Coils Sheets and Rolls of 100 Feet
Moisture barrier Options – Polysurlyn, Polykraft
External Coat Options – Polyester (PE), Acrylic, PVDF, Anti Sweat Coating etc..

Deep Corrugated Sheets

Stainless Steel Deep Corrugated Sheets are available in two different nominal corrugation profiles, with bare or painted exterior surface, and in smooth or stucco embossed surface finishes.

Grades –

SS304, SS304L, SS316L
Thickness – 0.3 mm to 0.8 mm
Width – 840 mm (Nominal)
Available in Coils, Sheets, Rolls
Moisture barrier Options – Polysurlyn, Polykraft
External Coating Options – PE, PVDF, Acrylic, Clear Coat etc

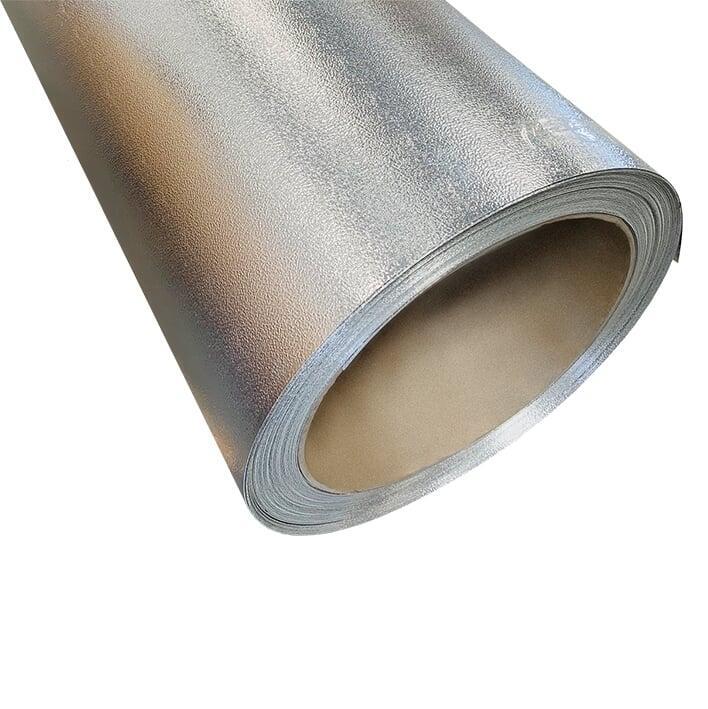

Stucco Embossed SS Jacketing

Stucco Embossed is a popular finish used for Stainless Steel jacketing. The stucco-like surface texture (also known as pebble or orange peel design) hides small imperfections and scratches caused by physical damage during or after installation.

Grades –

SS304, SS304L, SS316L
Thickness – 0.3 mm to 0.6 mm
Width – 914/1000/1220 mm
Available in Coils, Sheets
Moisture barrier Options – Polysurlyn, Polykraft
External Coating Options – PE, PVDF, Acrylic, Clear Coat etc..

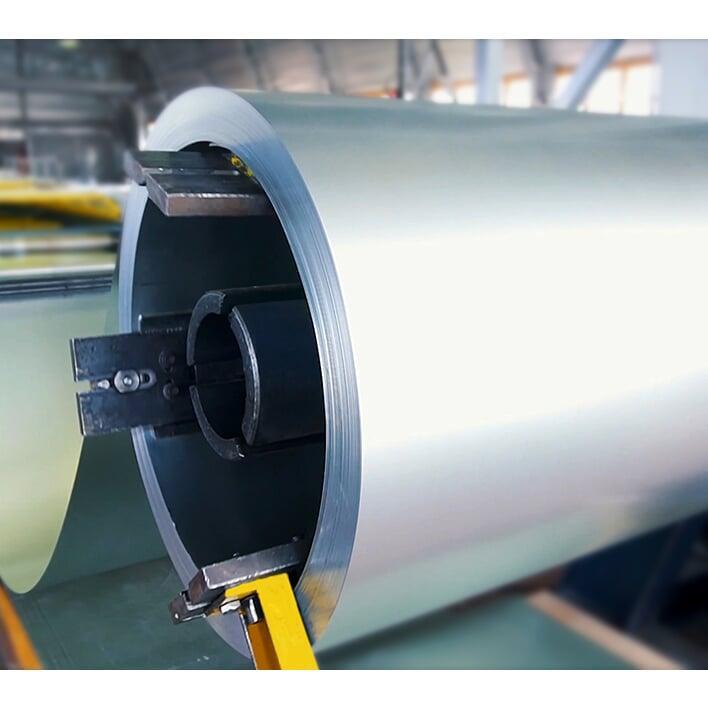

Stainless Steel Jacketing with Moisture barrier`

Stainless Steel Roll Jacketing is manufactured from T-304 and T-316 prime grade Stainless Steels.

Grades –

SS304, SS304L, SS316L
Thickness – 0.3 mm to 1.3 mm
Width – 914/1000/1220 mm
Available in Coils, Sheets
Moisture barrier Options – Polysurlyn, Polykraft

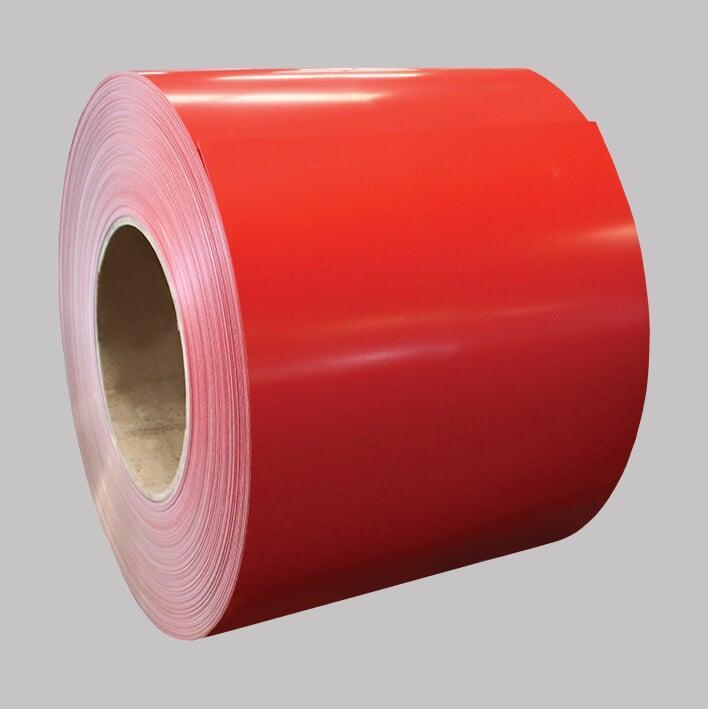

Painted Stainless Steel Jacketing

Painted Stainless Steel Jacketing has a factory applied and baked on finish of highly durable hard film with various paint systems like PVDF, polyester, acrylic, and epoxy with a coating thickness of 15-25 microns (0.6 ?1.0 mils).

Grades –

SS304, SS304L, SS316L
Thickness – 0.3 mm to 1.3 mm
Width – 914/1000/1220 mm
Available in Coils, Sheets
Moisture barrier Options – Polysurlyn, Polykraft
External Coating Options – PE, PVDF, Acrylic, Clear Coat etc.

Tedlar Coated Stainless Steel Jacketing

edlar Coated Stainless Steel Jacketing has a factory-applied Tedlar, a 38 m PVF (Polyvinyl Fluoride) film on the exterior surface.
