Aluminium Jacketing

Enquire Now

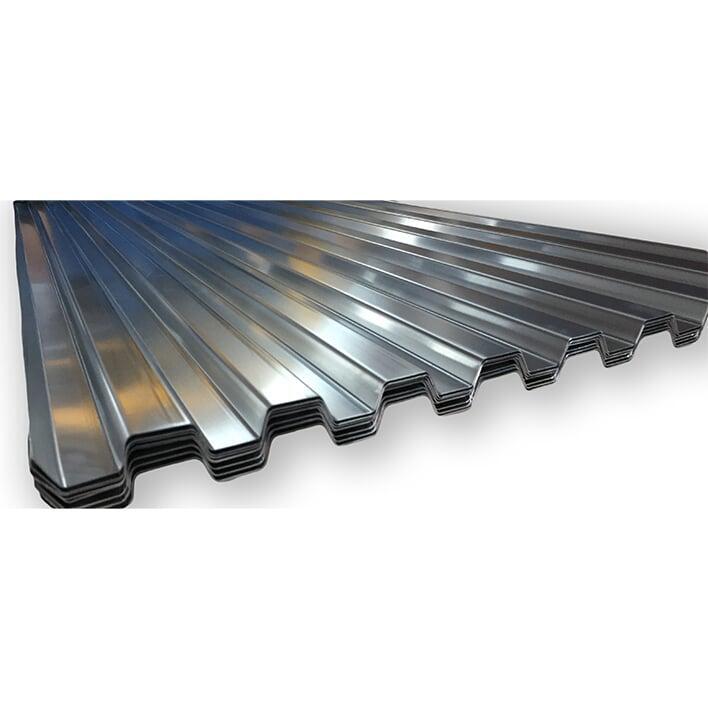

Box Rib/Trapezoidal Profiled Sheets

4 X 1 Box Rib is designed with 1″ high ribs on 4″ centres, engineered for maximum structural stiffness.


Grades- AA1060,AA3003,AA3105,AA5052,AA5005,AA6061, Alclad 3003-7072
Thickness from 0.4 – 1.2 mm
Nominal Widths – 840 mm
Available in Coils Sheets and Rolls of 100 Feet
Moisture barrier Options – Polysurlyn, Polykraft
External Coat Options – Polyester (PE), Acrylic, PVDF, Anti Sweat Coating etc..

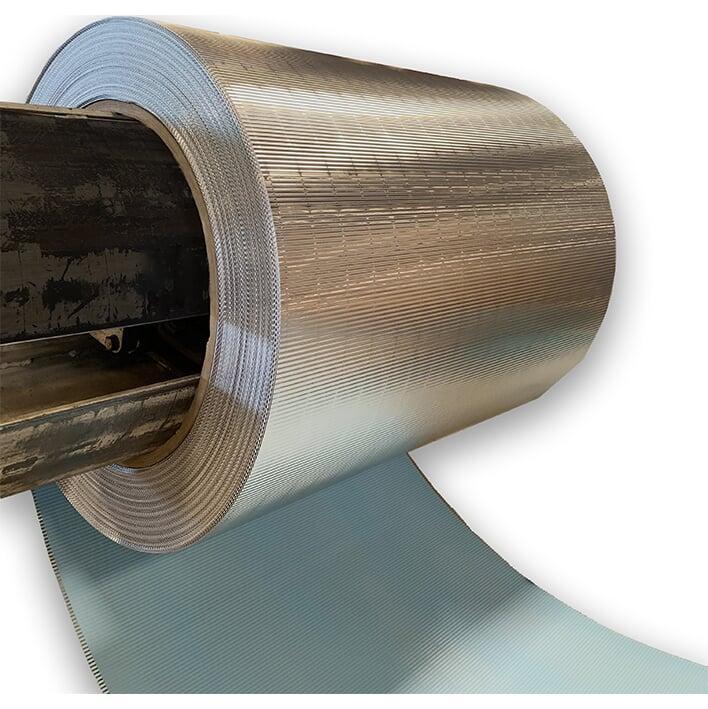

X Crimped (5 mm/3/16 inch /Reeded) Profile

Aluminium 3/16° Corrugated (Cross-Crimped/Reeded/ 5mm corrugated) finish consists of parallel grooves or crimps about 3/16° apart running in the length direction of the pipe.


Grades- AA1060,AA3003,AA3105,AA5052,AA5005,AA6061, Alclad 3003-7072
Thickness from 0.4 – 1.2 mm
Widths – 914/1000/1220 mm
Available in Coils Sheets and Rolls of 100 Feet
Moisture barrier Options – Polysurlyn, Polykraft
External Coat Options – Polyester (PE), Acrylic, PVDF, Anti Sweat Coating etc..

    Deep Corrugated Sheets

    Aluminium Deep Corrugated Sheets are available in two different nominal corrugation profiles, with bare or painted exterior surface, and in smooth or stucco embossed surface finishes.


    Grades- AA1060,AA3003,AA3105,AA5052,AA5005,AA6061, Alclad 3003-7072
    Thickness from 0.4 – 1.2 mm
    Nominal Widths – 840 mm
    Available in Coils Sheets and Rolls of 100 Feet
    Moisture barrier Options – Polysurlyn, Polykraft
    External Coat Options – Polyester (PE), Acrylic, PVDF, Anti Sweat Coating etc..

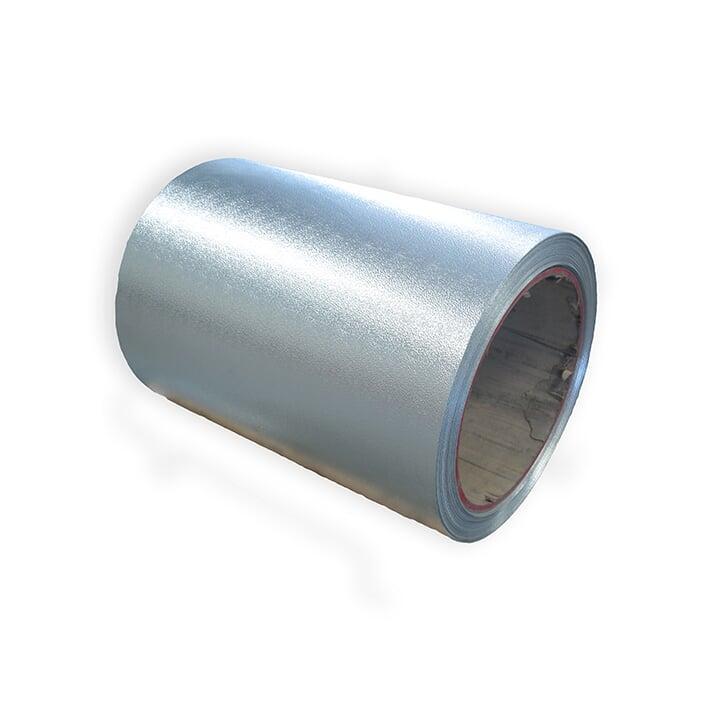

    Stucco Embossed Aluminium Jacketing

    Stucco Embossed is a popular finish used for aluminum jacketing.


    Grades- AA1060,AA3003,AA3105,AA5052,AA5005,AA6061, Alclad 3003-7072
    Thickness from 0.4 – 1.2 mm
    Widths – 914/1000/1220 mm
    Available in Coils Sheets and Rolls of 100 Feet
    Moisture barrier Options – Polysurlyn, Polykraft
    External Coat Options – Polyester (PE), Acrylic, PVDF, Anti Sweat Coating etc..

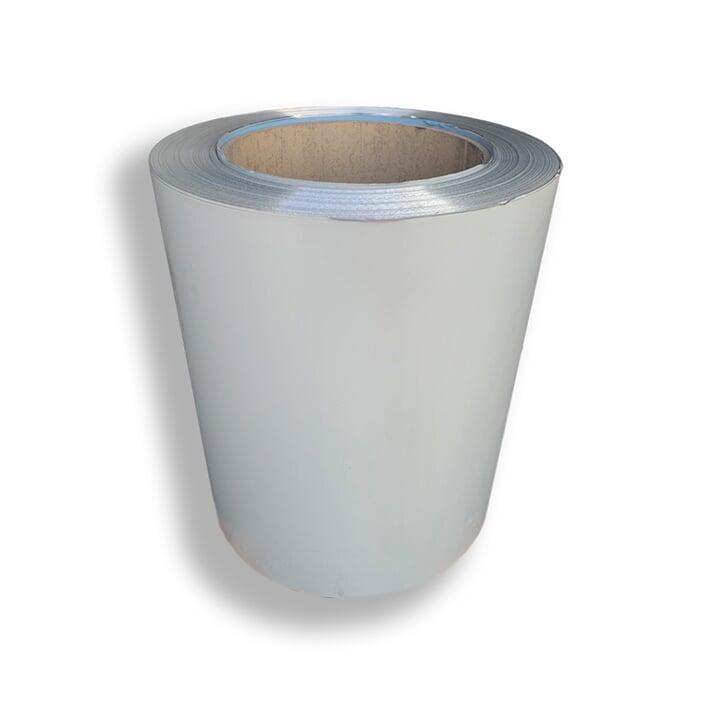

    Aluminium Jacketing with Moisture barrier`

    Aluminium Jacketing from Insurapid is a proven protective outer surface on mechanical insulation systems such as pipe, vessel and equipment used in industrial and commercial applications.

    Grades- AA1060,AA3003,AA3105,AA5052,AA5005,AA6061, Alclad 3003-7072Thickness from 0.4 – 1.2 mmWidths – 914/1000/1220 mmAvailable in Coils Sheets and Rolls of 100 FeetMoisture barrier Options – Polysurlyn, Polykraft

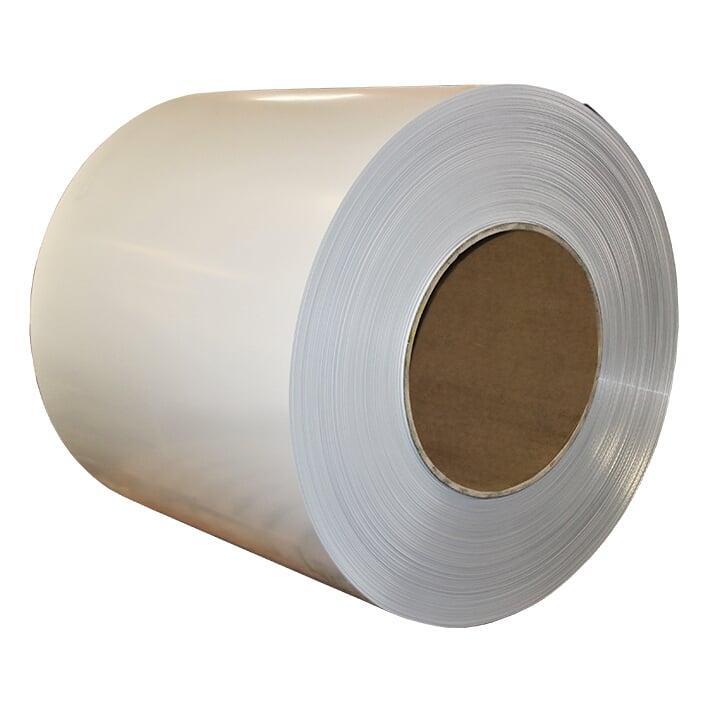

    Painted Aluminium Jacketing

    Painted Aluminium Jacketing has a factory applied and baked on finish of highly durable coating of PVDF or Acrylic or Polyester paint on the exterior surface.


    Grades- AA1060,AA3003,AA3105,AA5052,AA5005,AA6061, Alclad 3003-7072Thickness from 0.4 – 1.2 mmWidths – 914/1000/1220 mm. Available in Coils Sheets and Rolls of 100 Feet Moisture barrier Options – Polysurlyn, PolykraftExternal Coat Options – Polyester (PE), Acrylic, PVDF, Anti Sweat Coating etc..Thickness from 0.4 – 1.2 mmWidths – 914/1000/1220 mm

    Tedlar Coated Aluminium Jacketing

     Tedlar Coated Aluminium Jacketing has a factory-applied Tedlar, a 38 m  PVF (Polyvinyl Fluoride) film on the exterior surface.
