Aluminized Steel Jacketing

Enquire Now

Stucco Embossed Aluminized Steel

The stucco-like surface texture (also known as pebble or orange peel design) hides small imperfections and scratches caused by physical damage during or after installation.

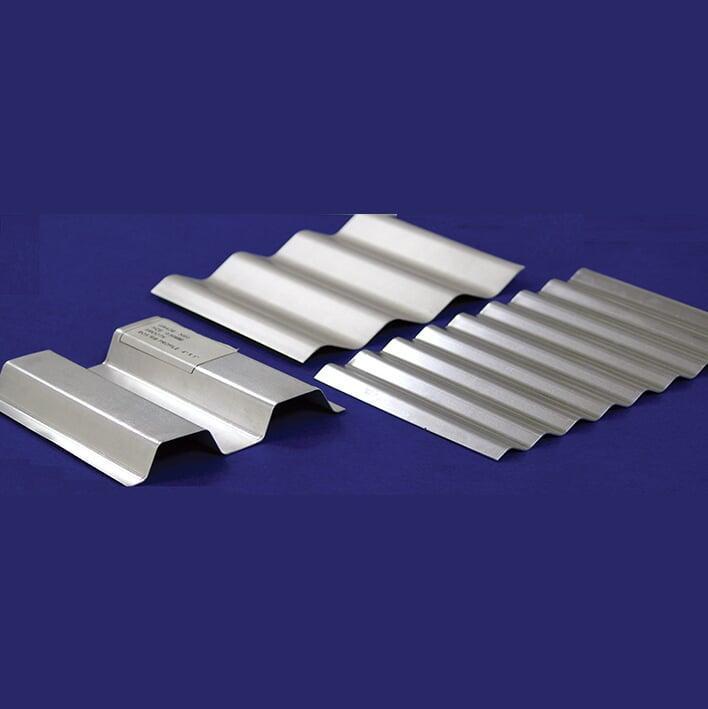

Deep Corrugated Aluminized Steel

Aluminized Steel Deep Corrugated Sheets are available in two different nominal corrugation profiles, with bare or painted exterior surface, and in smooth or stucco embossed surface finishes.

Grades – Aluminised Steel Type 2
Thickness – 0.45 mm to 0.8 mm
Width – 914/1000/1220 mm
Available in Coils, Sheets
Moisture barrier Options – Polysurlyn, Polykraft
External Coating Options – PE, PVDF, Acrylic, Clear Coat etc.

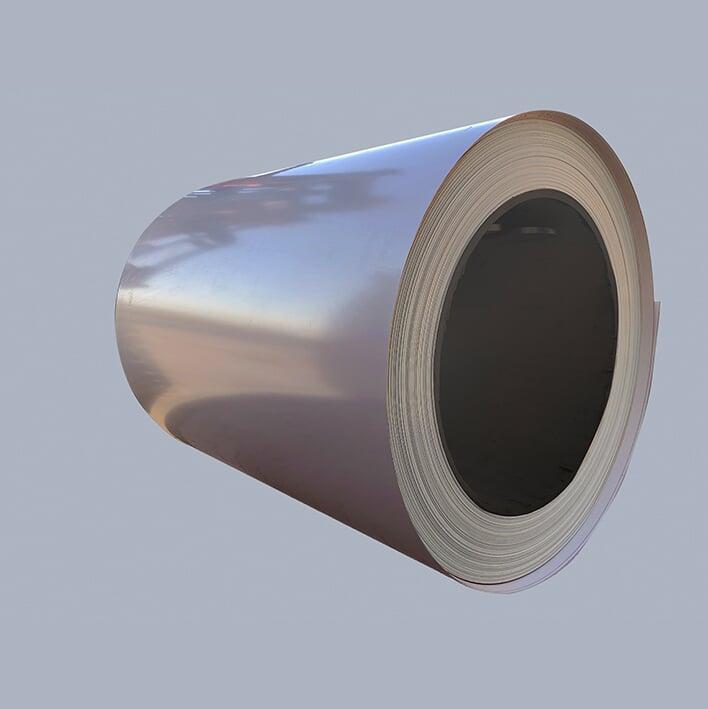

    Coated Aluminized Steel Type 1

    Aluminized Steel – Type 1 generally comes with a 2 side Polyester coating which imparts the metal with extra corrosion resistance.


    Grades – Aluminised Steel Type 1
    Thickness – 0.45 mm to 1.3 mm
    Width – 914/1000/1220 mm
    Available in Coils, Sheets
    Moisture barrier Options – Polysurlyn, Polykraft
    External Coating Options – PE, PVDF, Acrylic, Clear Coat etc.

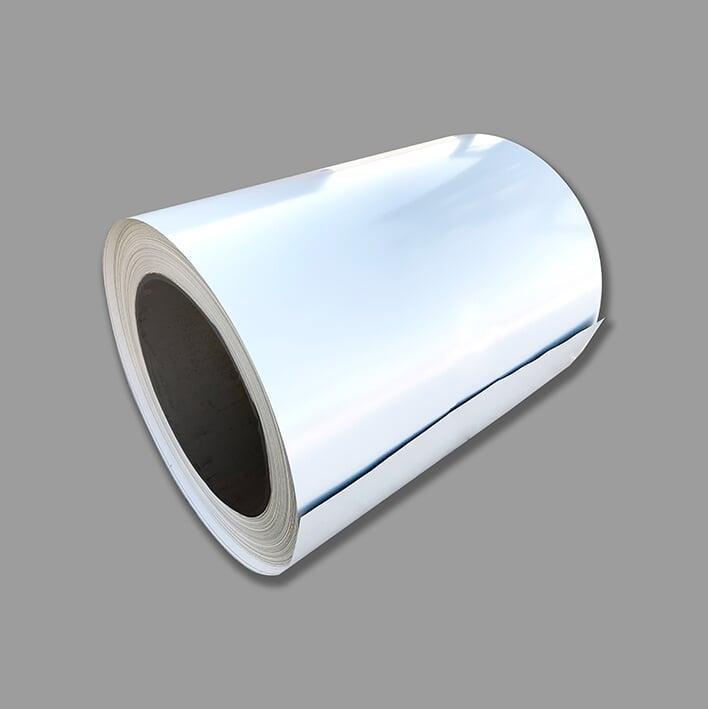

    Coated Aluminized Steel Type 2

    Painted Aluminized Steel Type 2 Jacketing has a factory applied and baked on finish of highly durable hard film with various paint systems like PVDF, polyester, acrylic, and epoxy with a coating thickness of 15-25 microns.


    Grades –

    Aluminised Steel Type 2
    Thickness – 0.45 mm to 1.3 mm
    Width – 914/1000/1220 mm
    Available in Coils, Sheets
    Moisture barrier Options – Polysurlyn, Polykraft
    External Coating Options – PE, PVDF, Acrylic, Clear Coat etc.

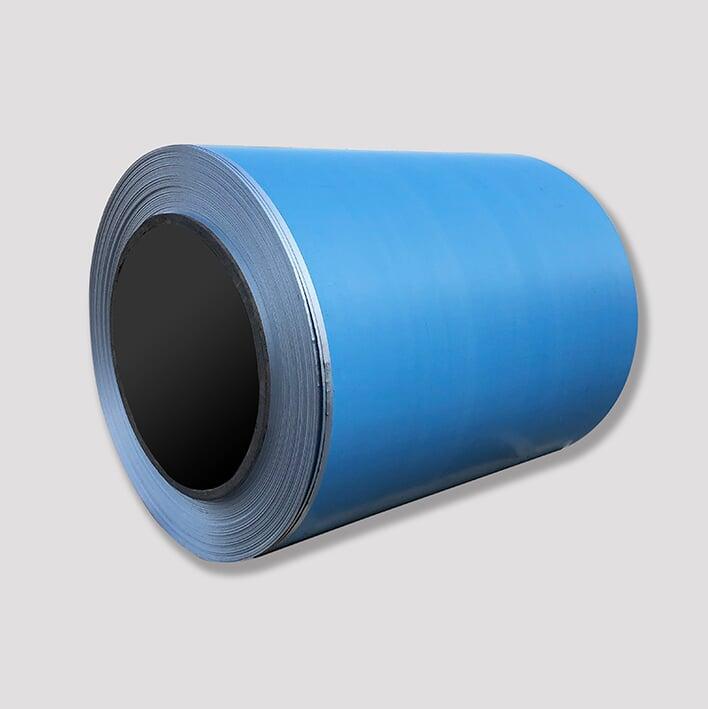

    Aluminized Steel Type 1 (with/without) Moisture barrier

    Aluminized steel is produced by hot-dip coating process on both sides with aluminium-silicon alloy.


    Grades – Aluminised Steel Type 1Thickness – 0.45 mm to 1.3 mmWidth – 914/1000/1220 mmAvailable in Coils, SheetsMoisture barrier Options – Polysurlyn, Polykraft

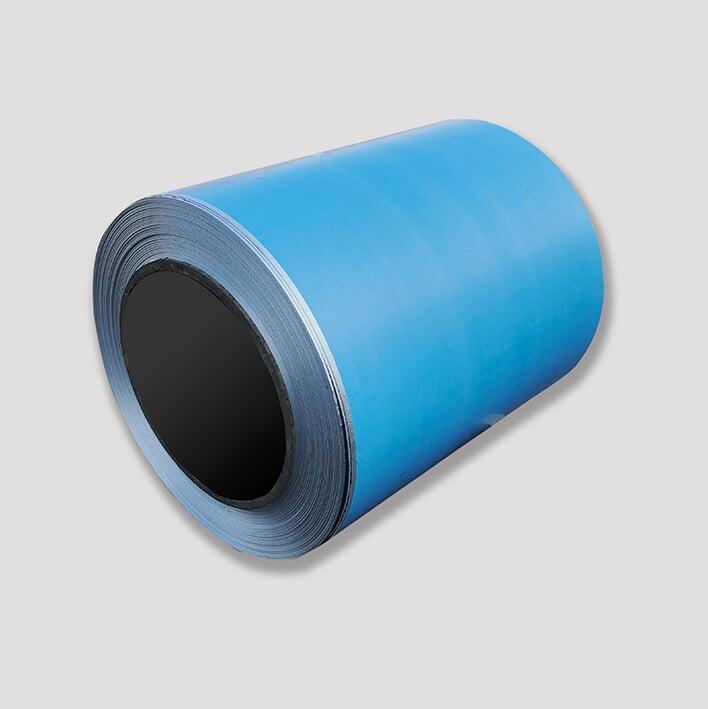

    Aluminized Steel Type 2 (with/without) Moisture barrier

    Aluminized Steel Type 2 according to ASTM A 463/A 463M T2 305. T2: commercially pure aluminium 300 means coating weight total both sides 300 g/m2


    Grades – Aluminised Steel Type 2
    Thickness – 0.45 mm to 1.3 mm
    Width – 914/1000/1220 mm
    Available in Coils, Sheets
    Moisture barrier Options – Polysurlyn, Polykraft
