Aluzinc/Galvalume Jacketing

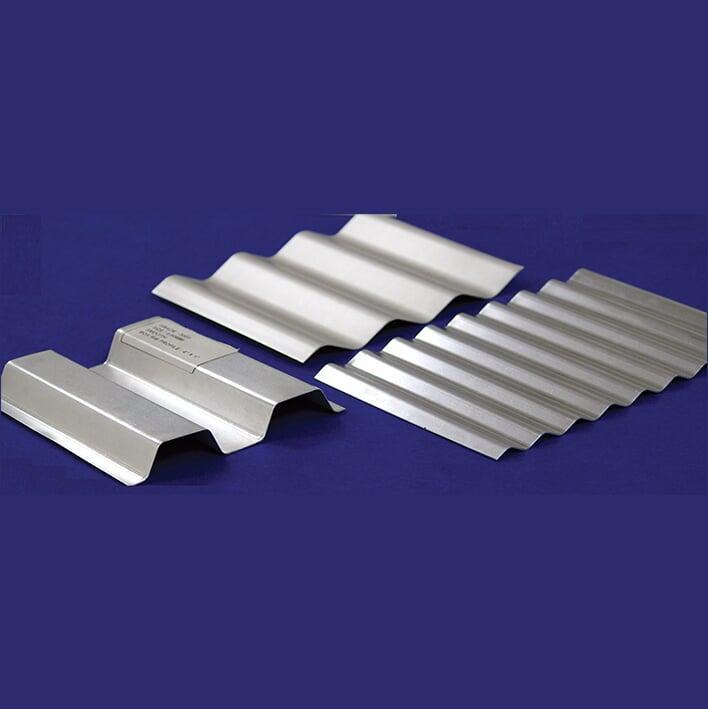

Deep Corrugated Aluzinc Sheets
Aluzinc Deep Corrugated Sheets are a premier protective outer surface for mechanical insulation systems on flat surfaces, equipment, towers, vessels, and vertical cylindrical tanks with an outer diameter larger than 8 ft.
Grades –
AZ185 and AZ150
Thickness – 0.45 mm to 0.8 mm
Nominal Width – 840 mm
Sheet Length – 3 feet to 12 feet
Moisture barrier Options – Polysurlyn, Polykraft
External Coating Options – PE, PVDF, Acrylic, Clear Coat etc.
Thickness – 0.45 mm to 0.8 mm
Nominal Width – 840 mm
Sheet Length – 3 feet to 12 feet
Moisture barrier Options – Polysurlyn, Polykraft
External Coating Options – PE, PVDF, Acrylic, Clear Coat etc.

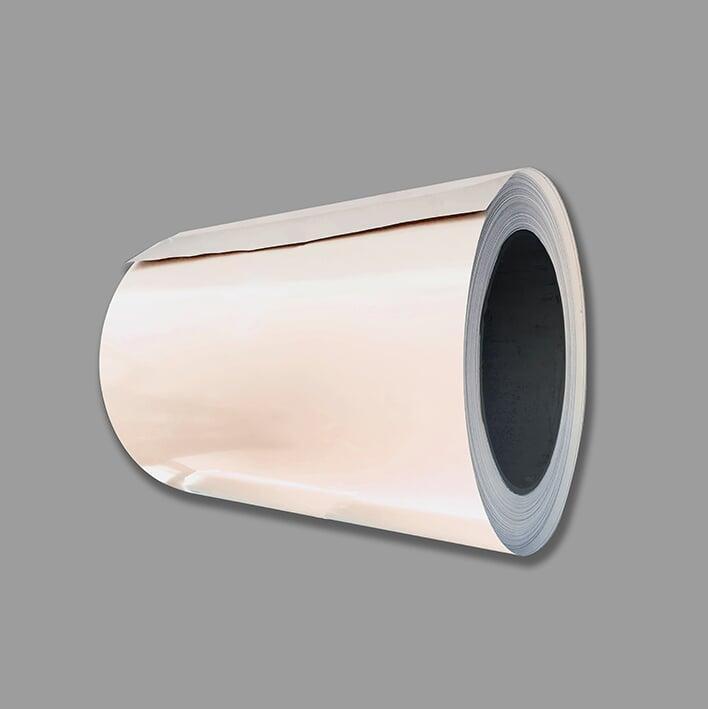

Prepainted Aluzinc Jacketing
Painted Aluzinc Jacketing has a factory applied and baked on finish of highly durable hard film with various paint systems like PVDF, polyester, acrylic, and epoxy with a coating thickness of 15-25 microns.
Grades –
AZ185 and AZ150Thickness – 0.45 mm to 1.3 mmWidth – 914/1000/1220 mm Available in Coils, Sheets Moisture barrier Options – Polysurlyn, PolykraftExternal Coating Options – PE, PVDF, Acrylic, Clear Coat etc.

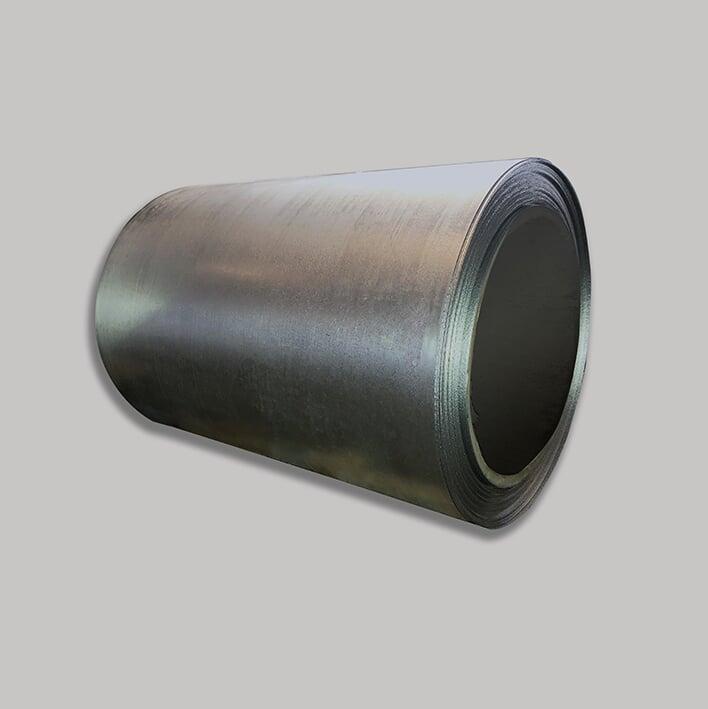

Aluminium Zinc coated Steel Jacketing (with/without) Moisture barrier
Aluminium Zinc coated Steel Jacketing (with/without) Moisture barrier
Aluzinc Metal Cladding is produced by coating Carbon Steel with a combination of 55% aluminium, 43.4 % zinc and 1.6 % silicon.
Grades –
AZ185 and AZ150Thickness – 0.45 mm to 1.3 mmWidth – 914/1000/1220 mm Available in Coils, Sheets Moisture barrier Options – Polysurlyn, Polykraft Regular or Zero SpanglesThickness – 0.45 mm to 1.3 mmWidth – 914/1000/1220 mm Available in Coils, Sheets Moisture barrier Options – Polysurlyn, Polykraft Regular or Zero Spangles
